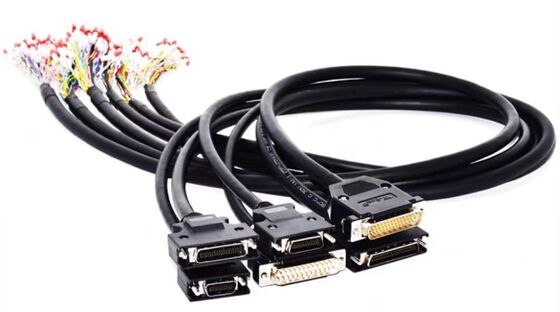

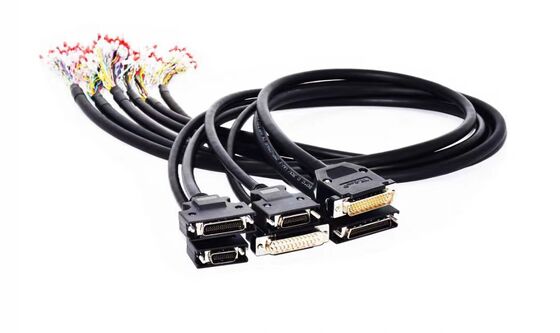

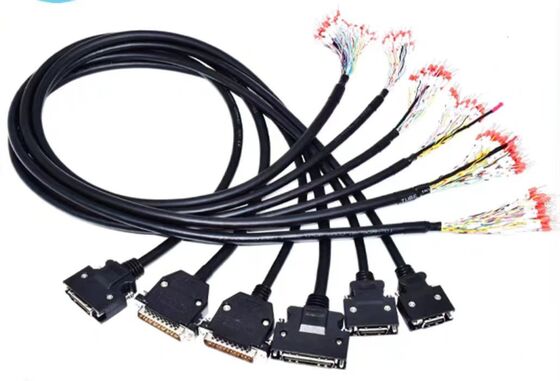

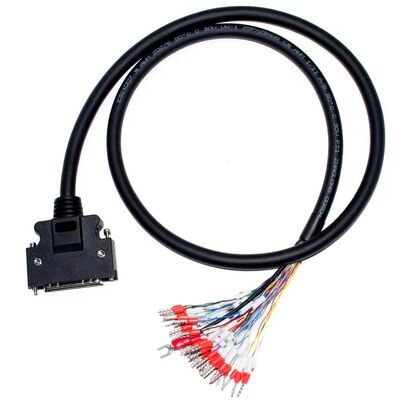

6FX2003 Servo Motor Connector with 8PIN Configuration, Wide Temperature Range, and Crimp/Solder Termination

Product Description:

Servo Motor Connectors are essential components designed to ensure reliable and efficient connections in various servo motor applications, including Electro Hydraulic Servo systems and AC Servo Drive setups. These connectors are engineered to provide optimal performance under demanding conditions, making them a vital choice for professionals and engineers working with precise motion control technologies.

One of the key features of Servo Motor Connectors is their versatile current rating capabilities. Available in a range from 1A to 10A and beyond, these connectors can accommodate different power requirements depending on the specific servo motor application. Whether you are working with low-power control signals or higher current demands, these connectors are designed to handle the electrical load safely and efficiently. This range of current ratings makes them suitable for both small-scale Electro Hydraulic Servo systems and more robust AC Servo Drive installations.

Termination type is another critical attribute of these connectors. They come with options for both crimp and solder termination, providing flexibility during installation and maintenance. Crimp termination offers a quick and secure connection method, ideal for environments where ease of assembly is a priority. On the other hand, solder termination ensures a permanent and highly reliable electrical connection, which is essential in applications where stability and durability are paramount. This flexibility allows users to choose the best termination method based on their specific requirements and application conditions.

Servo Motor Connectors are available in multiple gender configurations, including 4-pin, 6-pin, 8-pin, 12-pin, and 17-pin options. This variety enables seamless integration with a wide range of servo motor control systems and equipment. The different pin counts support diverse signal and power transmission needs, accommodating complex wiring schemes in Electro Hydraulic Servo and AC Servo Drive systems. This adaptability ensures that users can find the perfect connector configuration to match their system architecture, enhancing overall system reliability and performance.

Material construction is a significant factor contributing to the durability and performance of these connectors. They are typically made from a combination of metal and plastic components. The metal parts provide excellent electrical conductivity and mechanical strength, ensuring stable connections even under mechanical stress or vibration. Meanwhile, the plastic components offer insulation and protection against environmental factors such as dust, moisture, and chemical exposure. This combination of materials results in connectors that are not only robust but also lightweight and resistant to corrosion, making them suitable for industrial and outdoor applications.

Operating temperature range is a vital consideration for any connector used in servo motor systems. These Servo Motor Connectors are designed to operate reliably within a wide temperature range of -40℃ to +105℃. This broad operating range enables them to function effectively in harsh environments, whether in extreme cold or high-temperature conditions. Such temperature resilience is particularly important in Electro Hydraulic Servo and AC Servo Drive applications, where equipment may be exposed to fluctuating temperatures due to operational heat or environmental factors.

In summary, Servo Motor Connectors offer a comprehensive solution for connecting servo motors in various control systems, including Electro Hydraulic Servo and AC Servo Drive applications. With current ratings ranging from 1A to 10A and beyond, versatile crimp and solder termination options, multiple gender configurations from 4-pin to 17-pin, and durable construction from metal and plastic materials, these connectors deliver reliable electrical performance and mechanical robustness. Their wide operating temperature range of -40℃ to +105℃ further ensures dependable operation under challenging conditions. Choosing these connectors guarantees seamless integration, enhanced durability, and optimal performance in your servo motor control systems.

Features:

• Product Name: Servo Motor Connectors (6FX2003)
• Contact Plating: Silver Pin and Golded Pin options available
• Material: Durable Metal and Plastic construction
• Connector Type: Specifically designed for Servo Motor applications
• Termination Type: Supports both Crimp and Solder termination methods
• Compatible with AC Brushless Servo Motor systems
• Ideal for Electro Hydraulic Servo applications
• Suitable for High Torque DC Servo Motor connections

Technical Parameters:

Applications:

The NO MARK Servo Motor Connectors, model number 6FX2003, are designed to meet the demanding requirements of various industrial and automation applications. Manufactured in China and certified with CE and ISO9001, these connectors offer reliable performance and durability under a wide range of operating conditions, with an operating temperature range from -40℃ to +105℃. Their robust design and high-quality materials ensure stable electrical connections for critical servo motor systems.

These connectors are ideal for use in DC Servo Motor Drive systems, where precise control and efficient power transmission are paramount. The availability of multiple pin configurations, including 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN, allows seamless integration with a variety of servo motors and controllers, adapting to different wiring needs and signal requirements. With a wire gauge compatibility ranging from 18-24 AWG or larger (AWG 3-12 diameter), they provide flexibility for diverse electrical setups.

In hydraulic brake motors applications, the NO MARK 6FX2003 Servo Motor Connectors ensure secure and stable connections that withstand vibrations and harsh environmental conditions. Their panel mount and cable mount options facilitate easy installation and maintenance in compact and complex machinery, enhancing operational safety and reliability. These connectors contribute to the efficient and safe operation of hydraulic systems by maintaining consistent electrical connectivity.

The connectors are also perfectly suited for AC Brushless Servo Motor applications, supporting high-speed, high-precision motor control with minimal signal interference. Their design supports rapid and secure connections essential for dynamic industrial environments, including robotics, CNC machinery, and automated production lines. The high supply ability of 1000 pcs/day and fast delivery time of 1-3 working days ensure that large-scale projects and maintenance operations can proceed without delay.

Packaged carefully in carton boxes, these connectors are shipped with a minimum order quantity of 100 units, making them suitable for both small and large-scale manufacturing needs. Payment terms such as T/T and PayPal offer convenient transaction options for customers worldwide. Overall, the NO MARK 6FX2003 Servo Motor Connectors deliver exceptional performance and versatility across a broad spectrum of servo motor applications, including DC Servo Motor Drive, Hydraulic Brake Motors, and AC Brushless Servo Motor systems.

Customization:

Our Servo Motor Connectors, model number 6FX2003, are designed to meet the highest standards of quality and reliability. Manufactured in China under strict CE and ISO9001 certifications, these connectors are ideal for various applications in industrial automation, including AC Servo Motor Driver systems, Brushless Servo Motor setups, and Hydraulic Brake Motors.

We offer customization services to suit your specific needs, with a minimum order quantity of 100 pieces. Available in multiple gender configurations including 4PIN, 6PIN, 8PIN, 12PIN, and 17PIN, these connectors support current ratings ranging from 1A to 10A and beyond. You can choose between panel mount or cable mount options to best fit your installation requirements.

Packaging is handled carefully in sturdy carton boxes to ensure safe delivery. We maintain a supply ability of 1000 pieces per day and guarantee a quick delivery time of 1-3 working days after order confirmation. Payment can be made conveniently via T/T or PayPal.

Trust our Servo Motor Connectors to provide efficient and durable connectivity solutions for your AC Servo Motor Driver, Brushless Servo Motor, and Hydraulic Brake Motors applications. Contact us today to customize your order and enhance your industrial automation projects.

Support and Services:

Our Servo Motor Connectors are designed to provide reliable and secure connections in various industrial automation and robotics applications. For technical support, we offer detailed product documentation, including installation guides, wiring diagrams, and compatibility charts to ensure proper integration with your servo motor systems.

Should you encounter any issues or require assistance with product selection, installation, or troubleshooting, our technical support team is available to help. We recommend verifying connector specifications such as voltage, current ratings, and pin configurations before installation to avoid any operational disruptions.

We also provide customized solutions and services, including connector customization and bulk order support, to meet specific project requirements. Regular maintenance tips and best practices are included in our support materials to extend the lifespan and performance of your servo motor connectors.

For software and firmware updates related to connector interfaces, please refer to our online resources. We strive to ensure your servo motor connectors perform optimally in your automation systems, enhancing efficiency and reliability.
